Report item
Item specifics
  • Model Number: ATmega2560
  • Brand Name: BETTERSHENGSUN
  • is_customized: Yes
  • Test1: 4
  • Test4: 4
Product Description

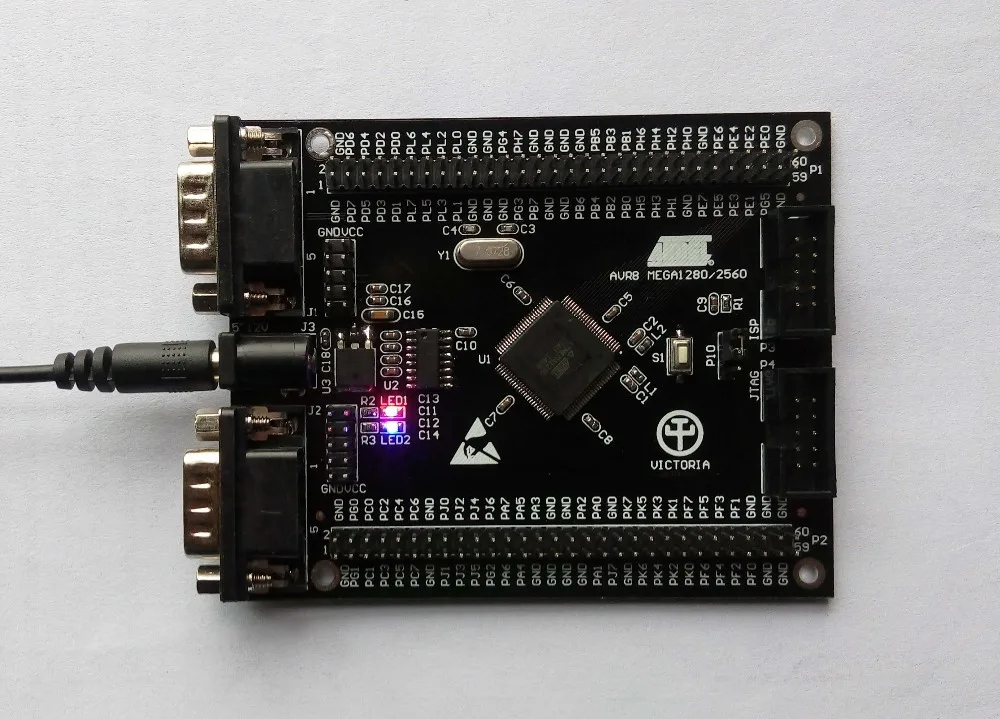

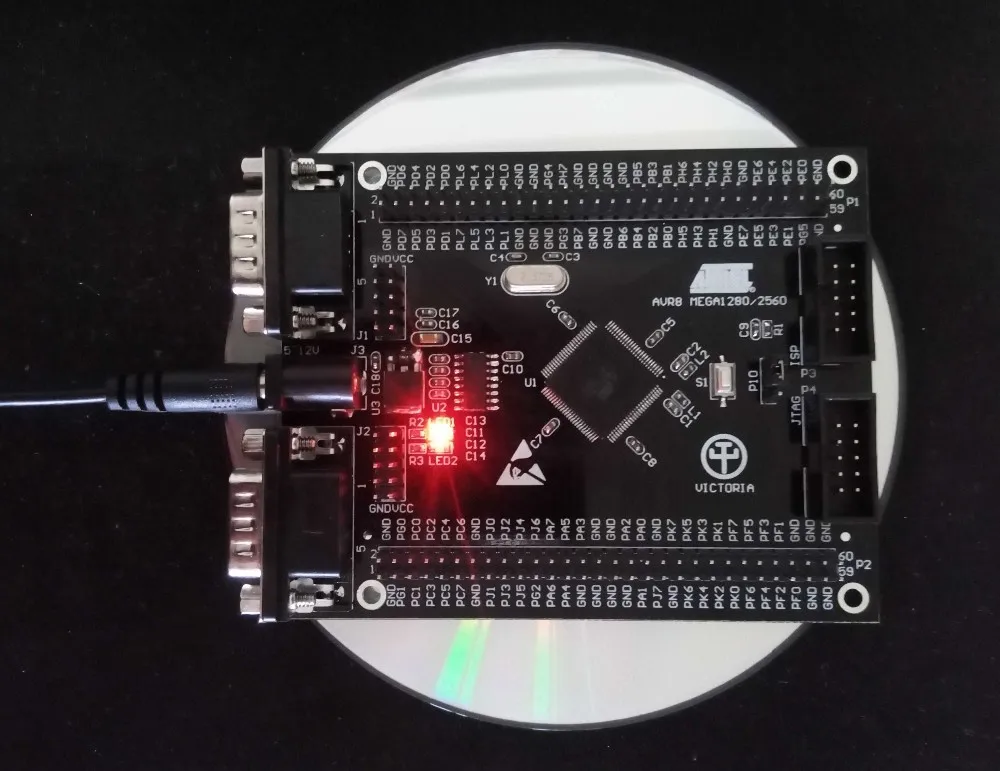

ATmega2560 development board / board / core board
Is a development board, it is service.
Promotional activities: free payment 1.5M serial line, USB power line.
1, ATmega2560V-8AU chip, 256k_FLASH, 8k_SRAM, 4k_EEPROM.
2, support JTAG, ISP debugging online download, onboard crystal 7.3728MHz.
3, input voltage: 5~12V/7~12V.
4, system voltage: 3.3V/5V.
5, output voltage: 3.3V/5V.
6, TTL level serial port: 0, 1, 2, 3.
232, 7 level serial port: 1, 3.
86, 8 IO mouth all leads, press the reset button.
9, power indicator LED 1, user status LED 1.
10, the chip has been written into the serial debugging procedures, the use of straight through the serial port to connect to the computer, with the serial assistant test, while LED flashing.
Shipping list:
1, development board (default 5V version).
2, serial line.
3, USB power supply line (only with 3.3V version).

aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
