Item specifics
  • Test4: 4
  • is_customized: Yes
  • Brand Name: BETTERSHENGSUN
  • Test1: 4
  • Model Number: PLC S7-200 CPU224XP
Product Description


PLC programmable controller user program includes a logic, counter, timer, complex mathematical operations and communications with other intelligent devices instruction content, so that it can monitor the input state, change the output state to achieve the purpose of control. Compact structure, flexible configuration and powerful instruction set make the PLC programmable controller to be the ideal solution for all kinds of control applications. Suitable for all walks of life, all kinds of occasions in the detection, monitoring and control of automation. Strong function to make it both in the independent operation, or connected into the network can achieve complex control functions. Give full play to its powerful functions in the distributed automation system. The scope of use can be covered from simple control of an alternative relay to more complex automatic control. The application field is very wide, covering all the industrial and civil fields, including all kinds of machine tools, machinery, electric power facilities, civil facilities, environmental protection equipment and so on. Such as: stamping machine. Grinding machine. Printing machinery. Rubber chemical machinery. Central air conditioning. Elevator control.



The PLC programmable controller is excellent in the following aspects:
1 high reliability
2 very rich instruction set
3 easy to master
4 convenient operation
5 rich built-in integrated functions, such as: PID flexible control, 6 axis high speed counter, two independent high speed output
6 real time characteristics
7 strong communication capability, especially for its free port communication function can be connected to any communication equipment
Size length * width * height: 40mm * 90mm * 145mm

TB2qvUfbFXXXXbnXpXXXXXXXXXX_!!720297762

TB2vPoobFXXXXbgXXXXXXXXXXXX_!!720297762

Size (w * h) 122 * 88mm
Power consumption 2W
Program memory 24KB
Data memory 10KB
Data power down to maintain internal FLASH, permanently maintained
Built in real-time clock time to maintain more than 2 years (to replace the battery)
Timer T0-T255
There are memories of the time delay T0 1ms, T64
T1-T4 T65-T68, 10ms
T5-T31 T69-T95, 100ms
Turn on / off delay T32 1ms, T96
T33-T36 T97-T100, 10ms
T37-T63 T101-T255, 100ms
Counter count C0-C255
High speed counter HC0-HC5
Sequence control relay (S) S0.0-S31.7
Accumulation register AC0-AC3
Jump / label 0-255
Call / subroutine 0-63
Interrupt program 0-127
Positive / negative jump 256
PID circuit 0-7
Time interrupt 2 x 1ms resolution
Edges are interrupted by 4 rising edges and / or 4 falling edges
Analog potentiometer 2
Boolean operation execution time of 0.1 Mu s
The execution time of floating point operations is 10 mu s
Software STEP 7 SP6 MicroWIN above
Clock built in
Integrated communication function
Communication interface 2 PPI communication port, RS485, RS232 each one, to support the free port, MODBUS protocol
Baud rate of PPI 9.6K, 19.2K
Free port baud rate 1.2kbaud to 115.2k
Maximum number of points per station 32 stations, 126 stations per network
Maximum master number 32
Point-to-point (PPI master mode) is (NETR/NETW), a total of 8, 2 reservation
I/O characteristics
The machine digital input points 14
Input type source (high level input)
The machine digital output points 10
Output type (relay output type) 10 point relay (5A), switching output (5-220VADC)

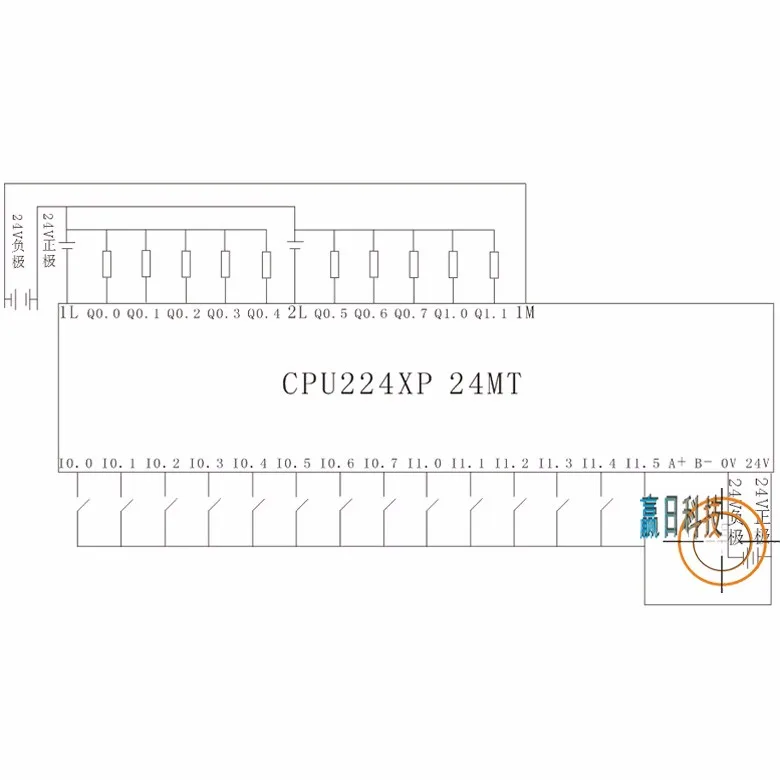

Output type (transistor output type) 10 point transistor (3A), output low level (12-24VDC)
Digital I/O image area 256 (128 input /128 output)
Analog I/O image area 64 (32 input /32 output)
Maximum number of modules allowed to extend I/O 7
Maximum number I/O points 256
Maximum analog I/O points 32AI/32AO
Pulse capture input 14
Single phase counter 6
4 phase counter
High speed pulse output 2 way
