Item specifics
  • Model Number: 32 relay module
  • Brand Name: BETTERSHENGSUN
  • is_customized: Yes
  • Test1: 4
  • Test4: 4
Product Description
32 relay drive plate (two blocks of 16 road overlay)

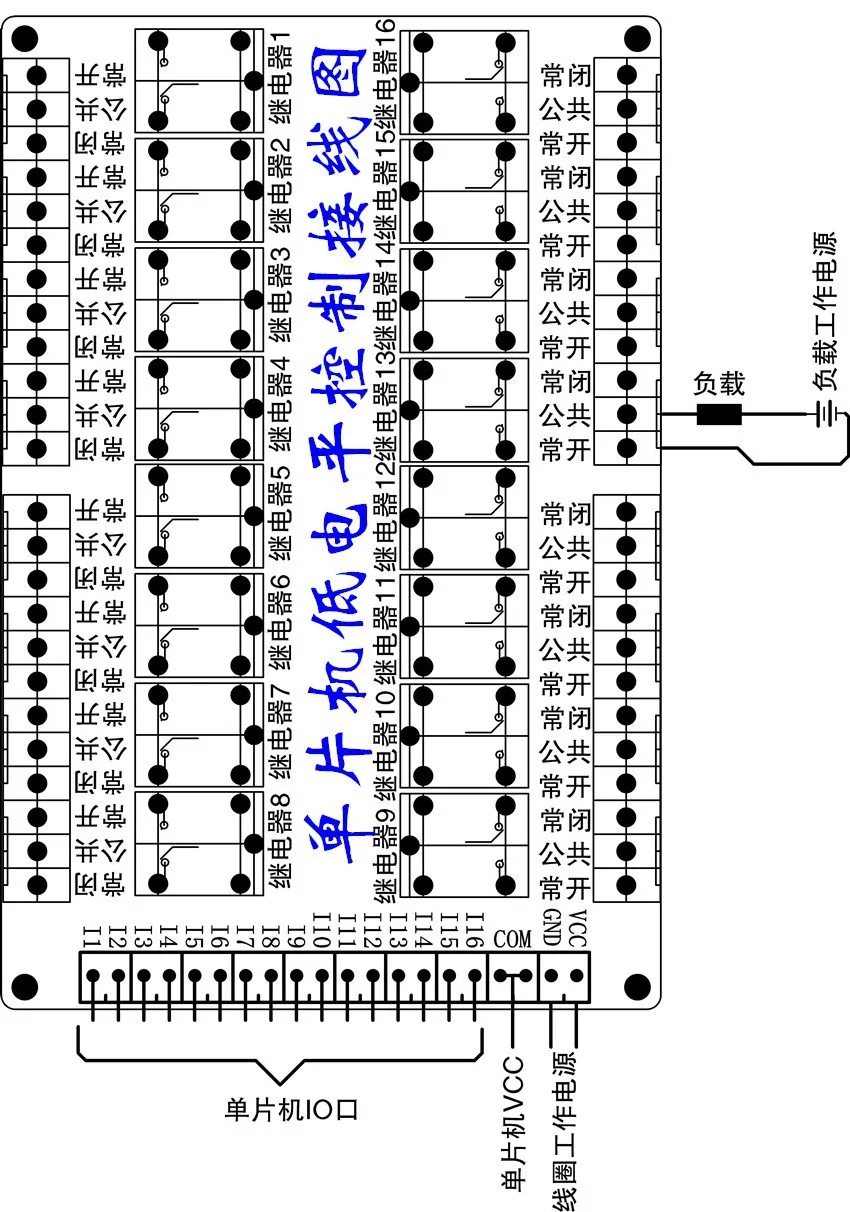

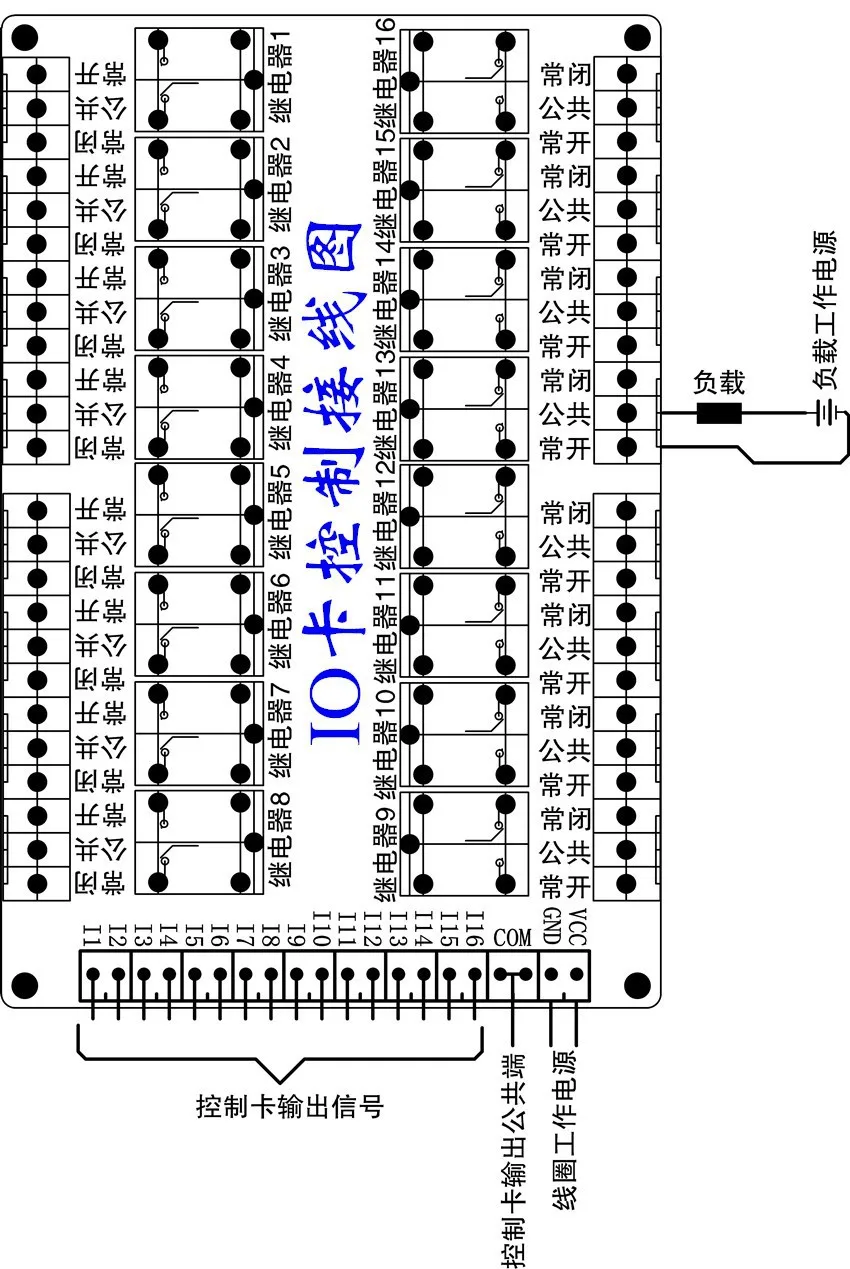

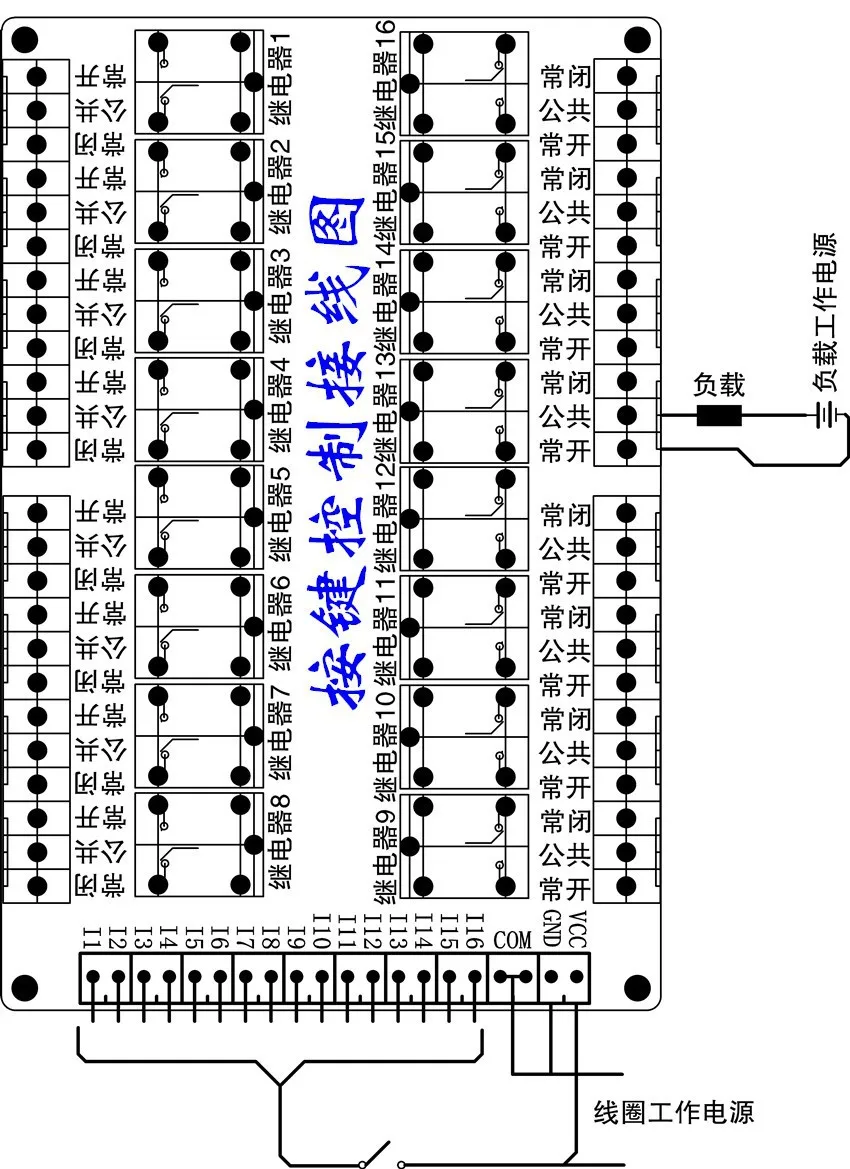

(1) can be used as a single chip, the output of the PLC driver board, amplifying board, can be key.
(2) the trigger signal voltage: 3.3V, 5V, 9V, 12V, 24V (when buying, please specify)
(3) the relay coil voltage: 5V, 9V, 12V, 24V (when buying, please specify)
(4) LED indicator each attraction, power LED indicator, power supply to prevent reverse connection
(5) complete photoelectric isolation, slotted anti-interference, high current design
(6) relay load: 10A/250VAC, 10A/30VDC
(7) size: 148*98*53mm (length * width * height)
The trigger signal current: <5mA (Dan Lu)
Trigger mode: low level or high level drive (driving when buying, please specify)



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
