Item specifics
  • Model Number: JT1199
  • Brand Name: BETTERSHENGSUN
  • is_customized: Yes
  • Test1: 4
  • Test4: 4
Product Description

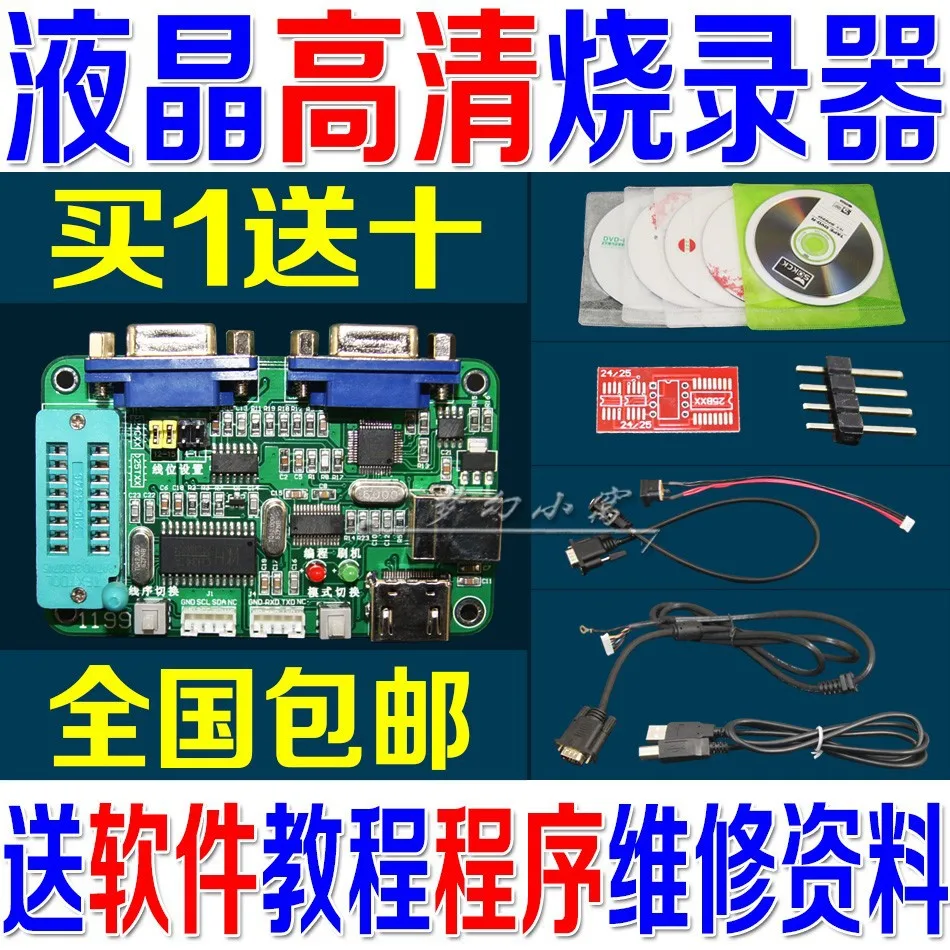

Buy one get ten:
1, 15 pin all copper allpass VGA burning special line 1
2, copper USB line 1
3, 2425 connecting plate 1 block
4, LCD repair data disc 4
5, the head of the DC line 1
6, the built-in VGA line 1
7, software data CD (materials, software, data) 1



The characteristic function
1 in support of the 24 series, 25 series line, patch burning,;
2 support Novatek series chip online brush write operations (NT68F63L)
3 support Mstar series chip online brush write operation
4 support SE FE series chips Samsung latest LG single chip machine brush write operation
5 support Weltren series chip online writers, including (WT61P4 et al.
)
6 support Winbond series chip online programming (W78E65P)
7 directly addressed by far the most common M6759 fault of high incidence of the old MCU
8 direct solution to the current common MX8050 (extensive use of crown foundry machine) this high fault MCU,
9 support Myson series chip online programming
10 support Genesis series chip online programming
11 support SyncMos series chip online programming
12 support TP series chip online programming
13 away from the tedious jumper settings, simple, intuitive, and convenient. (most of the domestic need through programmer jumpers to tedious to realize different function to read and write)
14 the full support of Leroy. Triumph. DINK. Yuekang. Hong Jie.CVT upgrade program, support the size of brand general board burn operation, covering (support) in the rate of more than 98%. Both old and new models.
15 support DVD with remote control, change the picture,
17 new integration software, optimizing burning mode, an integrated software can burn multiple series of different chip operation more simple......
18, support the satellite receiver brush, brush machine cat, router upgrades;
19: the programmer simply brush machine auxiliary equipment, different brands of different models of machine chip are not the same, only to find the corresponding chip brush files and operating software is the key to the success of the brush! The other scheme whether can brush we don\'t promise anything! Please forgive me!
Note: 4P2 not inserted VCC brush cat and a router or other equipment such as decoder, or easy to burn the TTL line of the chip and equipment, voltage equipment specified some for a serial port (serial port itself without voltage, many of them need to borrow power, like the VGA socket that) TTL,
Methods sequence reference multimeter testing equipment: GND voltage to zero, TX or RX about 3V, higher than that of 5V as far as possible not to pick up, unless there is a circuit diagram to determine the correct port. The programmer interface definition we have been marked in the picture;
Complimentary LCD video teaching DVD cd:
JT1199 USB HD LCD programmer buy one get nine brand LCD TV factory tooling
In 2012, the latest USB HD LCD programming (JT1199), can support DVD, nine, CRT TV, LCD monitors and high-definition LCD TV programmer contains data, SKYWORTH, Changhong, Konka, TCL, Hisense brands LCD TV factory tooling function
A full range of MSTAR IC, support online and offline writing (the mainstream LCD TV using the scheme). Such as the 6M16 6M181 6M48 TSUM26 36 9E19 and so on.
Two, support for the REALTEK series of IC programming, to support the original factory segmented data recording. For example: Leroy 2120266026622270 20332025.
Three, support the Huaya micro series IC online writing.
Four, support NOVATEK series IC programmer for example, Leroy PT551 PT361 PT363 etc.
Five, support MTK Series LCD and DVD IC online writing. For example: MT1389 MT1379 MT8223 8226
Six, support the Sunplus series DVD IC online writing. For example, 8202D 8202S 8202L 82818200
Seven, in support of the 2425 series of offline writing. For example, CRT TV 24 series IC, DVD, computer 25 series routers store IC,

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
